Wall Mounting Rack

Wall Mounting Rack are state – of the art computer assisted machinery and equipment and with cutting-edge technology are incorporated at every stage of production from work station to assembly line.

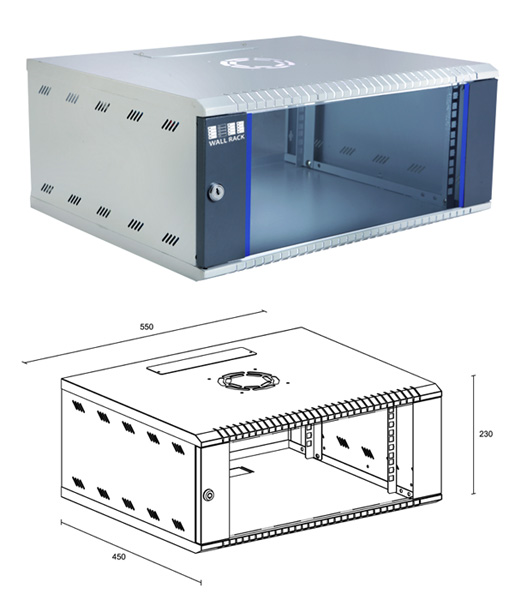

4U 550 X 450mm Depth

    FEATURES

  • Max Loading 60kg
  • Convenient and quick wall mounting
  • Welded Frame, Reliable structure
  • 19” standard installation
  • Cable entry on Top ∧ Bottom cover
  • Front Toughened Glass Door
  • Turing angle of front door over 180°
  • Material SPCC Quality Cold Rolled Sheet
  • Powder coating frame RAL 7035 door RAL 7016

    SPECIFICATIONS

  • Model No : MWM04U 05-04
  • Capacity :4U
  • Width :550 mm
  • Depth :450 mm
  • Height :231 mm
  • Usable Height :191 mm
  • Usable Depth :370 mm
  • Wall Mounting Pitch
  • Mounting width :518 mm
  • Mounting Height :137mm
6U 550 X 450mm Depth

    FEATURES

  • Max Loading 60kg
  • Convenient and quick wall mounting
  • Welded Frame, Reliable structure
  • 19” standard installation
  • Cable entry on Top ∧ Bottom cover
  • Front Toughened Glass Door
  • Turing angle of front door over 180°
  • Material SPCC Quality Cold Rolled Sheet
  • Powder coating frame RAL 7035 door RAL 7016

    SPECIFICATIONS

  • Model No : MWM06U 05 - 04
  • Capacity :6U
  • Width :550 mm
  • Depth :450 mm
  • Height :321 mm
  • Usable Height :281 mm
  • Usable Depth :370 mm
  • Wall Mounting Pitch
  • Mounting width :518 mm
  • Mounting Height :227mm
9U 550 X 450mm Depth

    FEATURES

  • Max Loading 60kg
  • Convenient and quick wall mounting
  • Welded Frame, Reliable structure
  • 19” standard installation
  • Cable entry on Top ∧ Bottom cover
  • Front Toughened Glass Door
  • Turing angle of front door over 180°
  • Material SPCC Quality Cold Rolled Sheet
  • Powder coating frame RAL 7035 door RAL 7016

    SPECIFICATIONS

  • Model No :MWM09U 05 - 04
  • Capacity :9U
  • Width :550 mm
  • Depth :450 mm
  • Height :456 mm
  • Usable Height :416 mm
  • Usable Depth :370 mm
  • Wall Mounting Pitch
  • Mounting width :518 mm
  • Mounting Height :360mm
12U 550 X 450mm Depth

    FEATURES

  • Max Loading 60kg
  • Convenient and quick wall mounting
  • Welded Frame, Reliable structure
  • 19” standard installation
  • Cable entry on Top ∧ Bottom cover
  • Front Toughened Glass Door
  • Turing angle of front door over 180°
  • Material SPCC Quality Cold Rolled Sheet
  • Powder coating frame RAL 7035 door RAL 7016

    SPECIFICATIONS

  • Model No :MWM12U 05 - 04
  • Capacity :12U
  • Width :550 mm
  • Depth :450 mm
  • Height :595 mm
  • Usable Height :551 mm
  • Usable Depth :370 mm
  • Wall Mounting Pitch
  • Mounting width :518 mm
  • Mounting Height :495mm
15U 550 X 450mm Depth

    FEATURES

  • Max Loading 60kg
  • Convenient and quick wall mounting
  • Welded Frame, Reliable structure
  • 19” standard installation
  • Cable entry on Top ∧ Bottom cover
  • Front Toughened Glass Door
  • Turing angle of front door over 180°
  • Material SPCC Quality Cold Rolled Sheet
  • Powder coating frame RAL 7035 door RAL 7016

    SPECIFICATIONS

  • Model No :MWM15U 05 - 04
  • Capacity :15U
  • Width :550 mm
  • Depth :450 mm
  • Height :721 mm
  • Usable Height :681 mm
  • Usable Depth :370 mm
  • Wall Mounting Pitch
  • Mounting width :518 mm
  • Mounting Height :625mm

Eco Rack

Eco Rack are state – of the art computer assisted machinery and equipment and with cutting-edge technology are incorporated at every stage of production from work station to assembly line.

17U 600 X 600mm Depth

    FEATURES

  • Exquisite design with precise dimension and
    craftsmanship
  • Cable entry on the top and bottom cover
  • Front door toughened glass door
  • Turning angle of front and rear door over 180°
  • Static Loading 600Kg
  • Material SPCC Quality cold rolled sheet
  • Compatible with 19” International standard
  • Powder coating Frame RAL 7035 Door RAL 7016

    SPECIFICATIONS

  • Model No : MFS17U 06-06
  • Capacity :17U
  • Width :600 mm
  • Depth :600 mm
  • Height :946 mm
  • Usable Height :771 mm
  • Usable Depth :500 mm

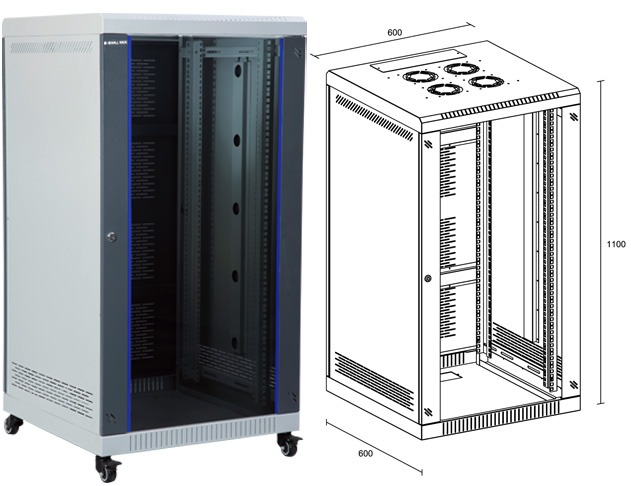

22U 600 X 600mm Depth

    FEATURES

  • Exquisite design with precise dimension and
    craftsmanship
  • Cable entry on the top and bottom cover
  • Front door toughened glass door
  • Turning angle of front and rear door over 180°
  • Static Loading 600Kg
  • Material SPCC Quality cold rolled sheet
  • Compatible with 19” International standard
  • Powder coating Frame RAL 7035 Door RAL 7016

    SPECIFICATIONS

  • Model No : MFS22U 06-06
  • Capacity :22U
  • Width :600 mm
  • Depth :600 mm
  • Height :1170 mm
  • Usable Height :995 mm
  • Usable Depth :500 mm

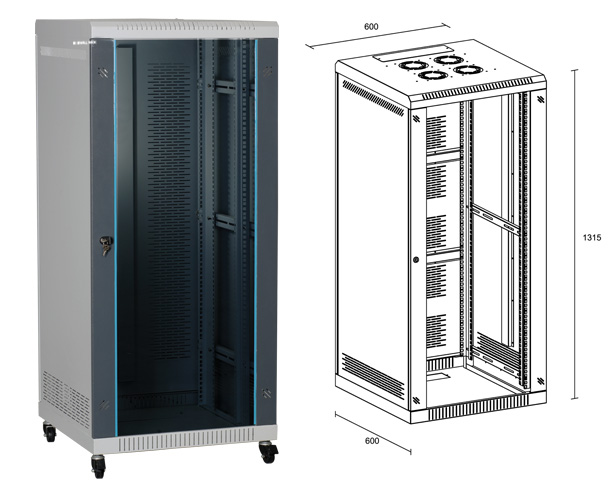

27U 600 X 600mm Depth

    FEATURES

  • Exquisite design with precise dimension and
    craftsmanship
  • Cable entry on the top and bottom cover
  • Front door toughened glass door
  • Turning angle of front and rear door over 180°
  • Static Loading 600Kg
  • Material SPCC Quality cold rolled sheet
  • Compatible with 19” International standard
  • Powder coating Frame RAL 7035 Door RAL 7016

    SPECIFICATIONS

  • Model No :MFS27U 06-06
  • Capacity :27U
  • Width :600 mm
  • Depth :600 mm
  • Height :1390 mm
  • Usable Height :1215 mm
  • Usable Depth :500 mm

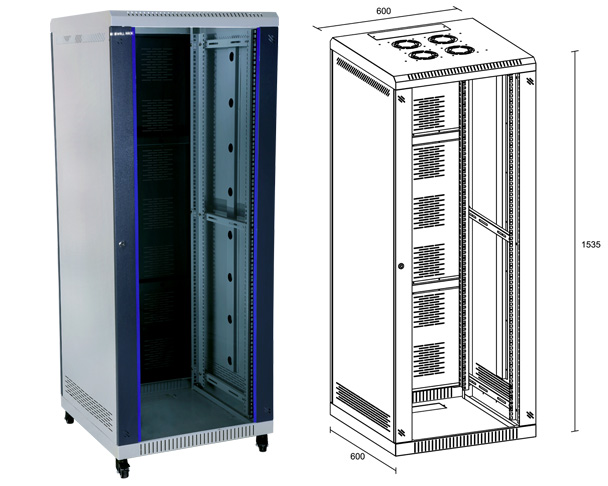

32U 600 X 600mm Depth

    FEATURES

  • Exquisite design with precise dimension and
    craftsmanship
  • Cable entry on the top and bottom cover
  • Front door toughened glass door
  • Turning angle of front and rear door over 180°
  • Static Loading 600Kg
  • Material SPCC Quality cold rolled sheet
  • Compatible with 19” International standard
  • Powder coating Frame RAL 7035 Door RAL 7016

    SPECIFICATIONS

  • Model No :MFS32U 06-06
  • Capacity :32U
  • Width :600 mm
  • Depth :600 mm
  • Height :1610 mm
  • Usable Height :1435 mm
  • Usable Depth :500 mm

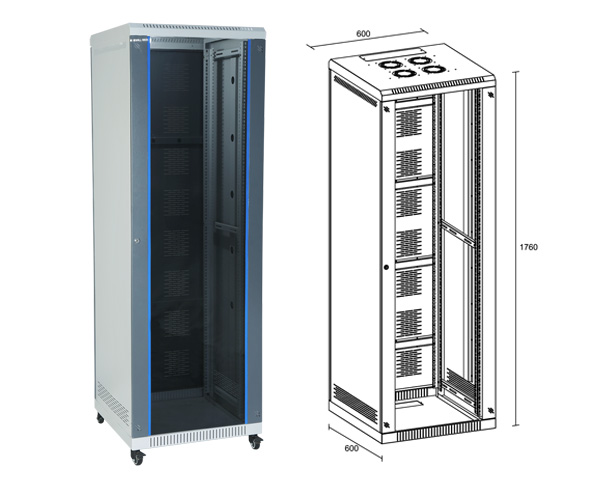

37U 600 X 600mm Depth

    FEATURES

  • Exquisite design with precise dimension and
    craftsmanship
  • Cable entry on the top and bottom cover
  • Front door toughened glass door
  • Turning angle of front and rear door over 180°
  • Static Loading 600Kg
  • Material SPCC Quality cold rolled sheet
  • Compatible with 19” International standard
  • Powder coating Frame RAL 7035 Door RAL 7016

    SPECIFICATIONS

  • Model No :MFS 37U 06-06
  • Capacity :37U
  • Width :600 mm
  • Depth :600 mm
  • Height :1836 mm
  • Usable Height :1661 mm
  • Usable Depth :500 mm
42U 600 X 600mm Depth

    FEATURES

  • Exquisite design with precise dimension and
    craftsmanship
  • Cable entry on the top and bottom cover
  • Front door toughened glass door
  • Turning angle of front and rear door over 180°
  • Static Loading 600Kg
  • Material SPCC Quality cold rolled sheet
  • Compatible with 19” International standard
  • Powder coating Frame RAL 7035 Door RAL 7016

    SPECIFICATIONS

  • Model No :MFS 42U 06-06
  • Capacity :42U
  • Width :600 mm
  • Depth :600 mm
  • Height :2065 mm
  • Usable Height :1890 mm
  • Usable Depth :500 mm

Heavy Rack

Heavy Rack are state – of the art computer assisted machinery and equipment and with cutting-edge technology are incorporated at every stage of production from work station to assembly line.

27U 600 X 800mm Depth

    FEATURES

  • Exquisite design with precise dimension and
    craftsmanship
  • Compatible with 19” International standard
  • Cable entry on the top and Bottom cover
  • Removable side panels to ease maintain.
  • Front Door Toughened glass Door
  • Turning angle of front and rear door over 180°
  • Static Loading 800Kg
  • Material SPCC Quality cold rolled sheet
  • Adjustable Feet and Heavy Duty Castors
  • Powder coating Frame RAL 7035 and RAL 7016

    SPECIFICATIONS

  • Model No :MFSH 27U 06 - 08
  • Capacity :27U
  • Width :600 mm
  • Depth :800 mm
  • Height :1436 mm
  • Usable Height :1263 mm
  • Usable Depth :650 mm
27U 600 X 1000mm Depth

    FEATURES

  • Exquisite design with precise dimension and
    craftsmanship
  • Compatible with 19” International standard
  • Cable entry on the top and Bottom cover
  • Removable side panels to ease maintain.
  • Front Door Toughened glass Door
  • Turning angle of front and rear door over 180°
  • Static Loading 800Kg
  • Material SPCC Quality cold rolled sheet
  • Adjustable Feet and Heavy Duty Castors
  • Powder coating Frame RAL 7035 and RAL 7016

    SPECIFICATIONS

  • Model No :MFSH 27U 06-10
  • Capacity :27U
  • Width :600 mm
  • Depth :1000 mm
  • Height :1410 mm
  • Usable Height :1263 mm
  • Usable Depth :850 mm
37U 600 X 1000mm Depth

    FEATURES

  • Exquisite design with precise dimension and
    craftsmanship
  • Compatible with 19” International standard
  • Cable entry on the top and Bottom cover
  • Removable side panels to ease maintain.
  • Front Door Toughened glass Door
  • Turning angle of front and rear door over 180°
  • Static Loading 800Kg
  • Material SPCC Quality cold rolled sheet
  • Adjustable Feet and Heavy Duty Castors
  • Powder coating Frame RAL 7035 and RAL 7016

    SPECIFICATIONS

  • Model No :MFSH 37U 06-10
  • Capacity :37U
  • Width :600 mm
  • Depth :1000 mm
  • Height :1856 mm
  • Usable Height :1677 mm
  • Usable Depth :850 mm
42U 600 X 1000mm Depth

    FEATURES

  • Exquisite design with precise dimension and
    craftsmanship
  • Compatible with 19” International standard
  • Cable entry on the top and Bottom cover
  • Removable side panels to ease maintain.
  • Front Door Toughened glass Door
  • Turning angle of front and rear door over 180°
  • Static Loading 800Kg
  • Material SPCC Quality cold rolled sheet
  • Adjustable Feet and Heavy Duty Castors
  • Powder coating Frame RAL 9005

    SPECIFICATIONS

  • Model No :MFSH 42U 06-10
  • Capacity :42U
  • Width :600 mm
  • Depth :1000 mm
  • Height :2068 mm
  • Usable Height :1888 mm
  • Usable Depth :850 mm
42U 800 X 1000mm Depth

    FEATURES

  • Exquisite design with precise dimension and
    craftsmanship
  • Compatible with 19” International standard
  • Cable entry on the top and Bottom cover
  • Removable side panels to ease maintain.
  • Front Door Toughened glass Door
  • Rear Door Vertically split double door
  • Static Loading 1000Kg
  • Material SPCC Quality cold rolled sheet
  • Adjustable Feet and Heavy Duty Castors
  • Powder coating Frame RAL 9005

    SPECIFICATIONS

  • Model No :MFSH 42U 08-10
  • Capacity :42U
  • Width :800 mm
  • Depth :1000 mm
  • Height :2068 mm
  • Usable Height :1888 mm
  • Usable Depth :850 mm

Open Rack

Open Rack are state – of the art computer assisted machinery and equipment and with cutting-edge technology are incorporated at every stage of production from work station to assembly line.

Mass Open Rack Aluminium

    FEATURES

  • High Strength 6061-T6 aluminum construction
  • Supplied with two top angles for maximum strength
  • High strength roll formed threaded mounting Holes
  • Weight capacity – 800kg
  • Supplied with Anchor fasteners
  • Powder coated RAL 9005 (Black)

    SPECIFICATIONS

  • Model No :MOR 45U
  • Capacity :45U
  • Width :514 mm
  • Depth :2147 mm
  • Height :450 mm
  • Usable Height :2002 mm
