Heavy Rack

Heavy Rack are state – of the art computer assisted machinery and equipment and with cutting-edge technology are incorporated at every stage of production from work station to assembly line.

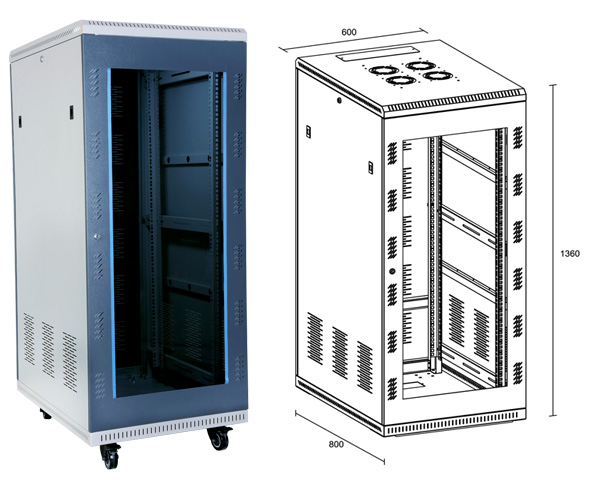

27U 600 X 800mm Depth

    FEATURES

  • Exquisite design with precise dimension and
    craftsmanship
  • Compatible with 19” International standard
  • Cable entry on the top and Bottom cover
  • Removable side panels to ease maintain.
  • Front Door Toughened glass Door
  • Turning angle of front and rear door over 180°
  • Static Loading 800Kg
  • Material SPCC Quality cold rolled sheet
  • Adjustable Feet and Heavy Duty Castors
  • Powder coating Frame RAL 7035 and RAL 7016

    SPECIFICATIONS

  • Model No :MFSH 27U 06 - 08
  • Capacity :27U
  • Width :600 mm
  • Depth :800 mm
  • Height :1436 mm
  • Usable Height :1263 mm
  • Usable Depth :650 mm

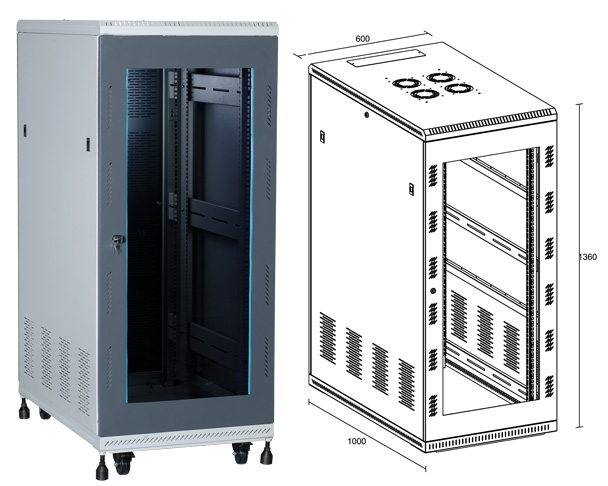

27U 600 X 1000mm Depth

    FEATURES

  • Exquisite design with precise dimension and
    craftsmanship
  • Compatible with 19” International standard
  • Cable entry on the top and Bottom cover
  • Removable side panels to ease maintain.
  • Front Door Toughened glass Door
  • Turning angle of front and rear door over 180°
  • Static Loading 800Kg
  • Material SPCC Quality cold rolled sheet
  • Adjustable Feet and Heavy Duty Castors
  • Powder coating Frame RAL 7035 and RAL 7016

    SPECIFICATIONS

  • Model No :MFSH 27U 06-10
  • Capacity :27U
  • Width :600 mm
  • Depth :1000 mm
  • Height :1410 mm
  • Usable Height :1263 mm
  • Usable Depth :850 mm
37U 600 X 1000mm Depth

    FEATURES

  • Exquisite design with precise dimension and
    craftsmanship
  • Compatible with 19” International standard
  • Cable entry on the top and Bottom cover
  • Removable side panels to ease maintain.
  • Front Door Toughened glass Door
  • Turning angle of front and rear door over 180°
  • Static Loading 800Kg
  • Material SPCC Quality cold rolled sheet
  • Adjustable Feet and Heavy Duty Castors
  • Powder coating Frame RAL 7035 and RAL 7016

    SPECIFICATIONS

  • Model No :MFSH 37U 06-10
  • Capacity :37U
  • Width :600 mm
  • Depth :1000 mm
  • Height :1856 mm
  • Usable Height :1677 mm
  • Usable Depth :850 mm
42U 600 X 1000mm Depth

    FEATURES

  • Exquisite design with precise dimension and
    craftsmanship
  • Compatible with 19” International standard
  • Cable entry on the top and Bottom cover
  • Removable side panels to ease maintain.
  • Front Door Toughened glass Door
  • Turning angle of front and rear door over 180°
  • Static Loading 800Kg
  • Material SPCC Quality cold rolled sheet
  • Adjustable Feet and Heavy Duty Castors
  • Powder coating Frame RAL 9005

    SPECIFICATIONS

  • Model No :MFSH 42U 06-10
  • Capacity :42U
  • Width :600 mm
  • Depth :1000 mm
  • Height :2068 mm
  • Usable Height :1888 mm
  • Usable Depth :850 mm

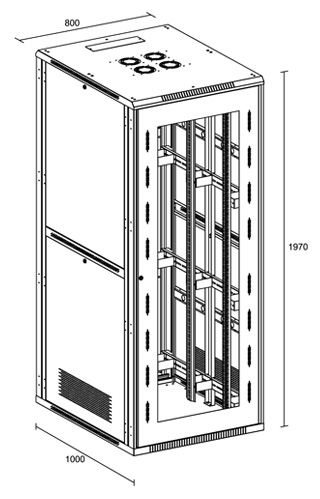

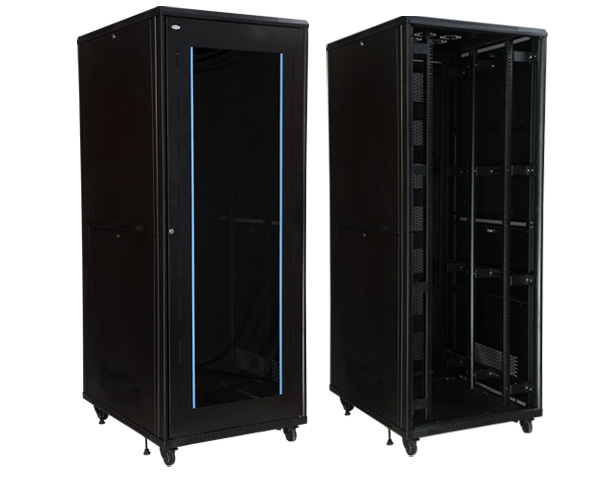

42U 800 X 1000mm Depth

    FEATURES

  • Exquisite design with precise dimension and
    craftsmanship
  • Compatible with 19” International standard
  • Cable entry on the top and Bottom cover
  • Removable side panels to ease maintain.
  • Front Door Toughened glass Door
  • Rear Door Vertically split double door
  • Static Loading 1000Kg
  • Material SPCC Quality cold rolled sheet
  • Adjustable Feet and Heavy Duty Castors
  • Powder coating Frame RAL 9005

    SPECIFICATIONS

  • Model No :MFSH 42U 08-10
  • Capacity :42U
  • Width :800 mm
  • Depth :1000 mm
  • Height :2068 mm
  • Usable Height :1888 mm
  • Usable Depth :850 mm
